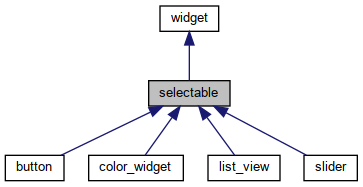

Inheritance diagram for selectable:
Collaboration diagram for selectable:
Public Member Functions | |
| widget * | find_selectable (navigation_type nt, point center) override |
| widget * | navigate_selectable (navigation_type nt, point center) override |
| void | on_select () override |
| void | on_unselect () override |
 Public Member Functions inherited from widget | |
| widget (widget const &)=delete | |
| widget & | operator= (widget const &)=delete |
| SDL_Rect const & | get_box () const |
| context_info const & | get_context_info () const |
| void | set_context_info (context_info const &ci) |
| void | set_parent (widget *parent) |
| virtual std::vector< widget * > | get_children () |
| virtual std::vector< widget const * > | get_children () const |
| virtual void | on_child_dirty (widget *child) |
| virtual std::vector< widget * > | get_visible_children () |
| virtual std::vector< widget const * > | get_visible_children () const |
| void | clear_dirty () |
| void | mark_dirty () |
| void | mark_child_dirty (widget *child) |
| void | draw (draw_context &dc, selection_context const &sc) const |
| void | draw_dirty (draw_context &dc, selection_context const &sc) const |
| virtual void | on_draw (draw_context &dc, selection_context const &sc) const =0 |
| virtual void | on_mouse_up_event (mouse_up_event const &e) |
| virtual void | on_mouse_down_event (mouse_down_event const &e) |
| virtual void | on_mouse_move_event (mouse_move_event const &e) |
| virtual void | on_key_event (key_event const &e) |
| virtual void | on_activate () |
| void | apply_layout (SDL_Rect box) |
| virtual void | on_box_allocated () |
| virtual size_hint | get_size_hint (int width=-1, int height=-1) const =0 |
| virtual bool | can_use_intermediate_size () const |
| virtual widget * | navigate_selectable_from_children (navigation_type nt, widget *w, point center) |
Additional Inherited Members | |
| Protected Member Functions inherited from widget | |
| std::optional< swipe_info > | get_swipe_info_with_context_info (mouse_up_event const &e) |
| widget * | navigate_selectable_parent (navigation_type nt, point center) |
| Protected Attributes inherited from widget | |
| widget * | _parent |
Member Function Documentation
◆ find_selectable()
Should return the first selectable widget according to the navigation type. If a widget is selectable it should return itself. Containers should return the first selectable child widget. Otherwise nullptr is returned.
The point may serve as a hint to provide a more accurate selection.
Reimplemented from widget.
◆ navigate_selectable()
Perform a navigation request from this widget as source.
A widget that is not selectable doesn't have to implement this. Containers on the other hand should implement this to enable navigation of their children.
The point may serve as a hint to provide a more accurate selection.
Reimplemented from widget.
The documentation for this struct was generated from the following file:
- /home/moritz/Programmieren/C++/libwtk-sdl2/include/selectable.hpp
